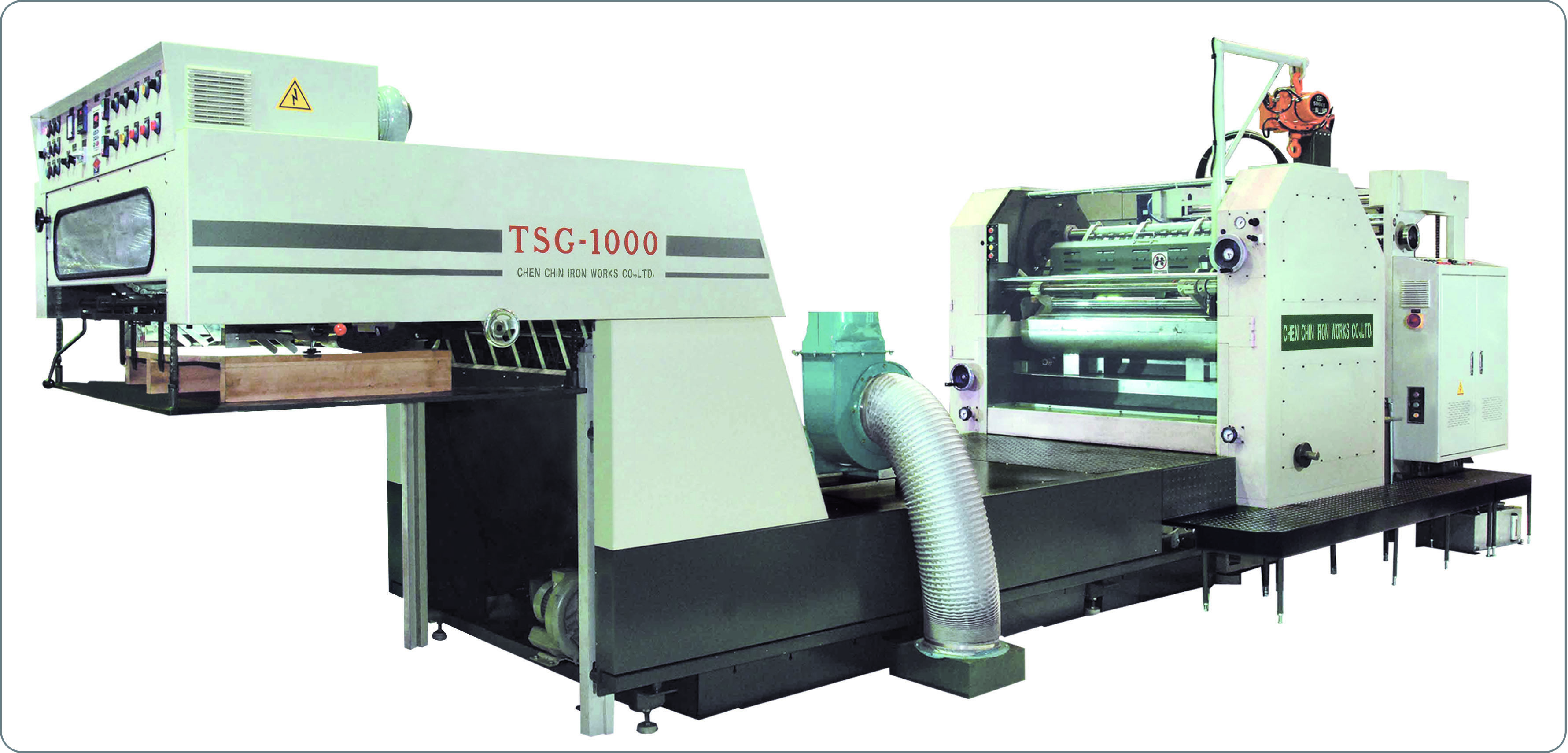

High Speed Sheet Feed Gravure Printing Machine
The TSG-1000 is a high-speed single-color sheet-fed gravure printing press developed for customers requiring higher production efficiency and output.
The TSG-1000 provides the same versatile gravure printing capabilities as the AGC. It can use both solvent-based and water-based inks and is suitable for printing on a variety of paper, plastic, and other suitable substrates.
The machine delivers high ink density, excellent color consistency, and outstanding printing results with metallic and pearl inks.
It is suitable for full-area printing, spot coating, and special printing effects.
With its higher production speed, the TSG-1000 is designed for applications requiring greater productivity and continuous production efficiency, while maintaining the high-quality printing performance of sheet-fed gravure printing.
Chen Chin Iron Works Co., Ltd. researched and developed the printing method of sheet-fed gravure printing machine. The operation is very simple. Utilizing liquid printing ink, it can pass the printing cylinder directly and be printed on paper and plastic material.
The printing ink is a kind of solvent and water ingredient. According to different printing elements, the printing effect is different.
This printing method is very advanced with respect to the development of packaging printing, particularly the printing of hardcopy cigarette box and poker card. All of these are subscribed to the high quality & volume color density, which traditional offset printing machine cannot catch up with. And this machine is also a protector of “color difference”.
The printing effect is very outstanding when this printing method is applied to metal ink and pearl ink and the printed products will have brightest luster. This method is applicable to packaging bag, certificate, adhesive label, cover page, bottom page, prototype and name card. It is also suitable for full area and spot coating.
The drying system after printing can meet customer‘s demand and the drying time can be extended.
|
High Speed Sheet-Fed Gravure press
|
|
Mode: TSG-1000
1. Max. machine speed: 8000 sheet /hour.
2. Max. sheet size: 1020mmX700mm
3. Max. Printed area: 1010mmX690mm
4. Paper weight: 80g/m2-450g/m2
5. The machine body is made from high tenacity casting iron; structure is strong, running stably & quiet.
6. High speed paper feeder with smooth paper feeding.
7. Stable rocking paper transmitting mechanism which is able to transmit the printing sheet correctly.
8. New patented fast printing plate changing mechanism.
9. Color process accurately which is suitable for multi color process in printing.
10.Circulation filtering oil sprinkle type lubrication system which is suitable for long time running.
11.With micro-processor electronic control system.
12. Drying system after printing can be extended as per customer’s demand.
|
TECHNICAL DATA
|
TYPE
|
TSG-1000
|
|
Printed area
|
1010mmX690mm
|
|
Max. sheet size
|
1020mmX700mm
|
|
Min. sheet size
|
540mmX360mm
|
|
Forme cylinder diameter
|
300mm
|
|
Forme cylinder length
|
1070mm
|
|
Blanket size
|
1.9x1020mmx850mm
|
|
Machine dimensions
|
7250mmX2650mmX2600mm
|
|
Machine weight
|
6800 KG
|
|
Max. Machine speed
|
8000 sheet/hour
|
|
Max. output
|
7200 sheet/hour
|
|
Paper weight
|
80g/m2-450g/m2
|
|
Feeder pile height
|
1600mm
|
|
delivery pile height
|
1150mm
|
|
Main power
|
17.5KW
|
|
I.R. lamp (Optional)
|
2.5KWX15支=37.5KW
|
|
Total power
|
75KW
|
