Sheet Plate Micro Embossing Machine
The machine operates by mounting a metal pattern plate onto the surface of the embossing cylinder. The plate is heated and pressed onto the paper substrate, creating raised patterns and distinctive textures with a reflective, glossy appearance.
No ink is required for this process. The machine can produce a wide variety of special textures and decorative patterns, including fine optical lines, artistic paper textures, and other customized surface effects.
The machine is widely used for cigarette boxes, wine boxes, paper bags, food packaging, cosmetic and pharmaceutical packaging, as well as printed materials such as posters, calendars, and advertising products.

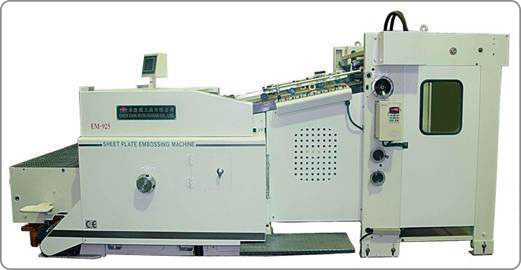

The EM-925 is a compact, space-saving embossing machine with a maximum
standard delivery height of 50 mm. Its low-profile paper delivery platform
simplifies sheet removal and stacking.

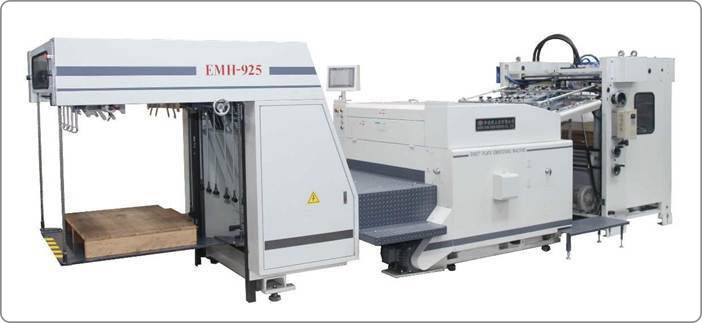

Model: EMH-925
The model EM-925 can be upgraded to the EMH-925 configuration,
which raises the delivery pile height to 1,000 mm for high-volume production
environments.
EMH-1050 — Large-Format
Embossing
The EMH-105 is designed for applications requiring larger
embossing coverage. It provides an enlarged embossing area of 1,050 × 725 mm
and accommodates sheets up to 1,050 × 730 mm.
Model: EMH-925 / EMH-1050
|
TECHNICAL SPECIFICATIONS |
|
|
|
Specification |
EM-925 |
EMH-925 |
EMH-1050 |
|
Embossing Area (mm) |
920 × 695 |
920 × 695 |
1050 × 725 |
|
Max. Sheet Size (mm) |
925 × 700 |
925 × 700 |
925 × 700 |
|
Min. Sheet Size (mm) |
400 × 360 |
400 × 360 |
500 × 360 |
|
Blanket Size (mm) |
925 × 790 |
925 × 790 |
1050 × 870 |
|
Stainless Steel Sheet (mm) |
0.5–0.7 × 925 × 800 |
0.5–0.7 × 925 × 800 |
0.5–0.7 × 1040 × 820 |
|
Plate Front to Image (mm) |
45 |
45 |
45 |
|
Front Margin (mm) |
11 |
11 |
11 |
|
Paper Thickness (mm) |
0.08–0.6 |
0.08–0.6 |
0.08–0.6 |
|
Machine Dimensions (mm) |
3600×2100×1550 |
5400×2100×1650 |
5400×2250×1650 |
|
Machine Weight (kg) |
4,000 |
4,800 |
5,600 |
|
Max. Output (sheets/hr) |
2,700 |
2,700 |
2,700 |
|
Feeder Pile Height (mm) |
1,000 |
1,000 |
1,000 |
|
Delivery Pile Height (mm) |
50 |
1,000 |
1,000 |
|
Main Electric Force (kW) |
11 |
12 |
12 |
|
Heater Power (kW) |
18 |
18 |
19 |
|
Total Power Required (kW) |
29 |
30 |
31 |
|
KEY FEATURES & TECHNOLOGY |
|
1 |
Space-Saving Low Delivery |
Compact design with only 50 mm delivery pile height
(standard). Upgradeable to 1,000 mm high-pile platform (EMH-925). |
|
2 |
Heavy-Duty Cast Iron Body |
Machine frame constructed from high-tenacity casting
iron for superior structural rigidity, stable operation, and minimal
vibration. |
|
3 |
Stream-Type Sheet Feeder |
Precision stream feeding ensures consistent paper
registration and reliable throughput at full production speeds. |
|
4 |
Even-Pressure Roller System |
Uniformly distributed roller pressure across the full
sheet width significantly extends rubber blanket service life. |
|
5 |
Multi-Point Temperature Control (Patented) |
Exclusive Invention patent multi-zone heating system
maintains uniform temperature across the embossing plate — eliminating
hot spots. |
|
6 |
Up to 200 °C Working Temp. |
Capable of sustaining process temperatures up to 200
°C, accommodating a wide range of embossing substrates. |
|
7 |
HMI Touchscreen |
HMI with one-button operation and temperature memory
storage function, and the screen color changes to remind you when the
temperature is reached. |
|
8 |
High-Endurance Heater |
Specially engineered heater withstands continuous
hightemperature operation with virtually zero maintenance requirement. |
|
9 |
Auto-Oiling Lubrication |
Automated lubrication system with programmable oiling
intervals, intermittent cycles, and low-oil alarm for proactive
maintenance. |
|
10 |
Large-Format Embossing |
Enlarged 1,050 × 725 mm embossing area for greater
working coverage on large-format sheets. |
Specifications subject to
change without notice.
◆ Embossing
Applications
 |
 |
|
Micro Embossing |
Whisky box Candy box
Liquor label |
|
|
|
C O N T A C T U S
CHEN CHIN IRON WORKS CO., LTD.
No. 67-2, Lane 124, Chao-Chung 1st St., Banqiao, New Taipei
City, Taiwan
TEL +886-2-2965-6749
FAX +886-2-2968-3414
EMAIL cclchang@ms14.hinet.net
WEB www.chenchin.com.tw
|
|
|
We accept OEM and ODM embossing plate manufacturing projects and
provide complete hardware and software support solutions.
